Magnetar UDP900
Product Description
Equipped with the famous professional quad-core system Media Tek MT8581 chipset, the UDP800 4K UHD Blu-ray player features advanced image decoding and processing technology, with 4K ultra HD and HDR support, including Dolby Vision and HDR10+, providing clear and sharp picture and rich colors. With its metal body while being elegant and durable, hi-end audio components and a custom transformer, the 4K UHD Blu-ray player UDP800 exudes the beauty of science and technology in simplicity and introversion, and makes your audio-video life even better.
Note: This product has a 5-6 week lead time for orders on average.
Comprehensive Multimedia Experience
Magnetar supports multiple disc and media formats, such as UHD-BD, BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, SACD, CD, CD-R/RW. In addition, USB HDD up to 16TB is supported, with direct access from your computer or NAS through your local network using DLNA or SMB protocols, for a better multimedia life.
Elegant Powerhouse

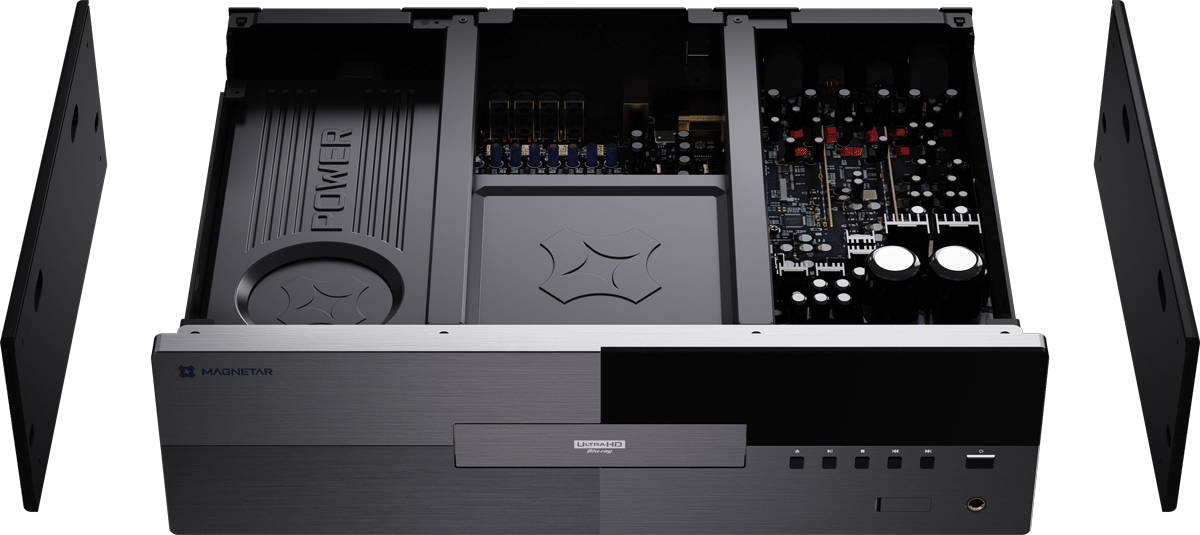

MAGNETAR engineers specially selected a custom 60W high-power low noise transformer for the UDP800, with a two-stage filter design along with Japanese Rubycon electrolytic capacitors to meet the high transient response required by surround sound systems and high-resolution audio. A separate metal case lowers noise level, providing stability and silence, further improving audio and video quality.
Technical Specifications
Disc Formats
- UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD，SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

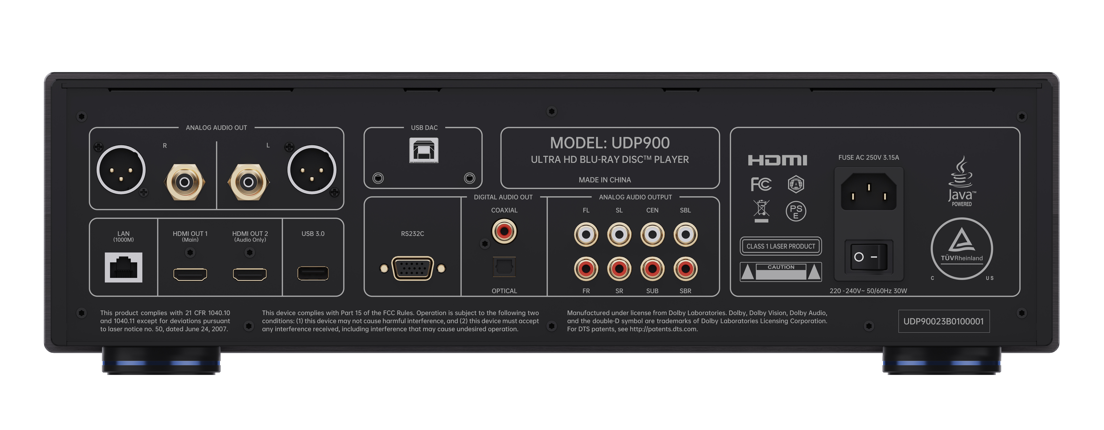

Output Formats
- Analog Audio Output: 7.1 channel RCA, 2 channel RCA and Balanced XLR
- Digital Audio Output: Optical, Coaxial, HDMI
- HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
- HDMI video: UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct.
Audio Characteristics
- Frequency range: HIFI 2 channel: 20Hz~80kHz (±0.03dB); multichannel: 20Hz~80kHz (±0.05dB)
- Signal-to-noise ratio: ≥120dB(2CH RCA); ≥130dB(2CH XLR)
- Distortion plus noise: ≤0.0005%
- Output amplitude: (RCA) 2. 1±0.2Vrms. (XLR) 4.2±0.4Vrms
- Dynamic range: ≥120dB(2CH RCA); ≥130dB(2CH XLR)
- Channel resolution: ≥110dB(2CH RCA); ≥140dB(2CH XLR)
General Specifications
- Power supply: AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz
- Power consumption: <40W, Standby<0.5W
- Dimensions: 445 x 321 x 133 mm
- Weight: 15.4kg
- Operating Temperature: 5°C~ 35°C (41°F ~ 95°F)
- Operating Humidity: 15% ~ 75%
